si_sphinx Posted March 26, 2013 Report Share Posted March 26, 2013 I am making a cnc machine and I am at the stage of making the driver and electronics. I have soldered up the CPB and need a transformer for it. Specs required: input - 240V, 60Hz output - 24V @ 10A I have looked around online but haven't found anything. I prefer to buy from NZ as I don't want to have to wait for it. Anyone know where I can find one? Quote Link to comment Share on other sites More sharing options...
NoFishing Posted March 26, 2013 Report Share Posted March 26, 2013 There are several businesses in New Zealand that do transformer winding/rewinding. You should give some of them a call. May not be that expensive to get one made if you can't find one 'off the shelf' A quick google search for 'Transformer rewinders' should get you started. Quote Link to comment Share on other sites More sharing options...
si_sphinx Posted March 26, 2013 Author Report Share Posted March 26, 2013 Shouldn't cost me more than 30-40$. I found one but have to wait till tomorrow to call them. Other than that I have nothing after doing many google searches. Quote Link to comment Share on other sites More sharing options...
Phantom Posted March 26, 2013 Report Share Posted March 26, 2013 Tried Element 14 and RS Components? They're the 2 main suppliers of electronic parts within NZ. Quote Link to comment Share on other sites More sharing options...
reptilez Posted March 26, 2013 Report Share Posted March 26, 2013 Phantom you are an admin!?!? Quote Link to comment Share on other sites More sharing options...
si_sphinx Posted March 26, 2013 Author Report Share Posted March 26, 2013 Thanks for the replies Tried Element 14 and RS Components? They're the 2 main suppliers of electronic parts within NZ. Yea tried element. Couldn't find anything on their site. I will check RS components. I have a few numbers I am going to ring tomorrow. Found a site transformers.co.nz that look promising. Quote Link to comment Share on other sites More sharing options...
si_sphinx Posted March 26, 2013 Author Report Share Posted March 26, 2013 Here is the CNC machine so far if anyone is interested Quote Link to comment Share on other sites More sharing options...
Caryl Posted March 27, 2013 Report Share Posted March 27, 2013 I don't know that "interested" would be the word I would use for me but I am curious to know what the machine will do once you have transformed it :dunno: Quote Link to comment Share on other sites More sharing options...
reptilez Posted March 27, 2013 Report Share Posted March 27, 2013 I don't know that "interested" would be the word I would use for me but I am curious to know what the machine will do once you have transformed it :dunno: :rotf: I was thinking the exact same thing! Quote Link to comment Share on other sites More sharing options...
si_sphinx Posted March 27, 2013 Author Report Share Posted March 27, 2013 :slfg: It will be used to cut out any shape that I tell it to. For example... Quote Link to comment Share on other sites More sharing options...
reptilez Posted March 27, 2013 Report Share Posted March 27, 2013 That is awesome! What will you use it for? Quote Link to comment Share on other sites More sharing options...
blueether Posted March 27, 2013 Report Share Posted March 27, 2013 That is awesome! What will you use it for?To cut any shape he wants :digH: Quote Link to comment Share on other sites More sharing options...
reptilez Posted March 27, 2013 Report Share Posted March 27, 2013 To cut any shape he wants :digH: :facepalm: I mean is he using it to make an aquarium stand etc... Quote Link to comment Share on other sites More sharing options...
si_sphinx Posted March 27, 2013 Author Report Share Posted March 27, 2013 No it will be for making RC model parts and any other projects. I will also use it to make a bigger and better cnc machine. Quote Link to comment Share on other sites More sharing options...
blueether Posted March 27, 2013 Report Share Posted March 27, 2013 I will also use it to make a bigger and better cnc machine.A machine programed to make a bigger and better version of itself, can't see how that could possibly end badly... Quote Link to comment Share on other sites More sharing options...
livingart Posted March 27, 2013 Report Share Posted March 27, 2013 :slfg: Quote Link to comment Share on other sites More sharing options...
Li@m Posted March 27, 2013 Report Share Posted March 27, 2013 Very Cool! Does it use a drill type bit or a laser? Quote Link to comment Share on other sites More sharing options...
Godly3vil Posted March 27, 2013 Report Share Posted March 27, 2013 Let me know when you have this working dude, was thinking about one of these the other day to cut some acrylic. Thinking about getting a dosing pump for e.i. dosing and would love a stand made up lol. Quote Link to comment Share on other sites More sharing options...
spoon Posted March 27, 2013 Report Share Posted March 27, 2013 global pc down here in chch have those transformers give them a bell should be able to send it to ya Quote Link to comment Share on other sites More sharing options...
Warren Posted March 27, 2013 Report Share Posted March 27, 2013 24V 10A = 240W so a decent sized transformer. If the output is being rectified to DC you'll need to allow for the increased RMS due to the very peaky rectifier current. Given the next frame size up from 250VA is 500VA you'll be looking at $100+ Do you want 24V 10A AC or 24VDC at 10A? If it's 24VDC at 10A then the above applies + you'll also need about 18VAC as rectified, allowing for diode drops and under load this will come out at about 24VDC (depending on the VA, transformer regulation and the impedance of the filter caps). You may be better off with a switchmode supply - more expensive but nicely regulated and PFC... Quote Link to comment Share on other sites More sharing options...

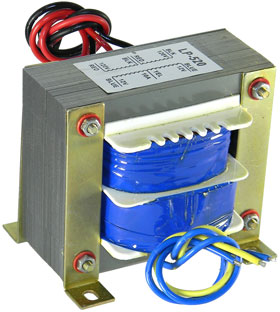

si_sphinx Posted March 27, 2013 Author Report Share Posted March 27, 2013 Thanks warren I need 24VDC. It will be going through a rectifier and the through a capacitor to smooth it out. Here is one overseas that is recommended by the driver supplier. http://www.mpja.com/24V-10A-Center-Tapped-12-0-12-Transformer/productinfo/7846%20TR/ Each stepper motor will draw 3A and I have 3 of them. I don't know much about all of this so I am learning as I go. Quote Link to comment Share on other sites More sharing options...
si_sphinx Posted March 27, 2013 Author Report Share Posted March 27, 2013 global pc down here in chch have those transformers give them a bell should be able to send it to ya I seen global pc. http://www.globalpc.co.nz/Computers/Transformers/Mains/Index.aspx and seem to be good prices. I just need to figure out exactly what I need since people are bringing up things that confuse me and I realize I need to make sure I get this right. :oops: Quote Link to comment Share on other sites More sharing options...
si_sphinx Posted May 12, 2013 Author Report Share Posted May 12, 2013 After calling soo many places around NZ I couldn't find anything available under $200. All quality NZ made transformers or imports with high mark ups. So I ended up importing my own. $24USD! :bggrn: $90NZD shipping. Still cheaper than buying here. All wired up. Very close to finishing this now. Gave it some leegs and feet today. :cofn: Quote Link to comment Share on other sites More sharing options...
livingart Posted May 12, 2013 Report Share Posted May 12, 2013 nice looking unit how is the rigidity for heavy pieces ? Quote Link to comment Share on other sites More sharing options...
si_sphinx Posted May 12, 2013 Author Report Share Posted May 12, 2013 Its not made to cut anything heavy. Just small things for hobbies etc. I still have to make the cutting bed which will be thicker and stronger than the thin bit of MDF sitting there at the moment. Quote Link to comment Share on other sites More sharing options...
